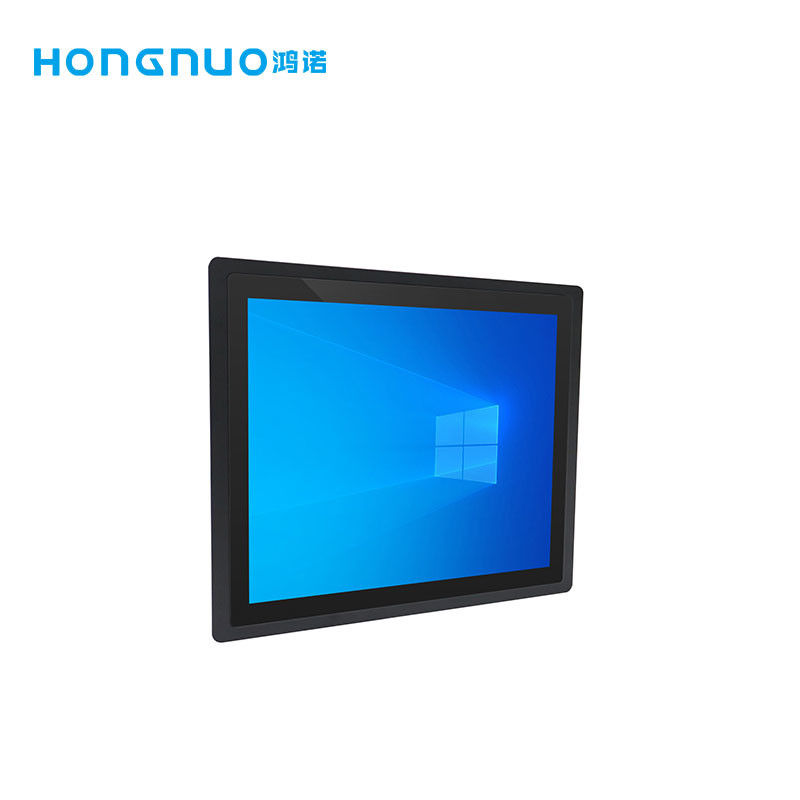

17 Inch Panel Mount Industrial Monitor 300 Nits 1280×1024 Resolution

17 Inch Panel Mount Industrial Monitor 300 Nits 1280×1024 Resolution

Product Details:

Place of Origin: Guangdong,China
Brand Name: HONGNUO
Certification: 3C, FCC, CE, ROHS
Model Number: HN-1701PMIM

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Packed in carton with EPE and foam, carton in wooden case.
Delivery Time: 5-10 work days upon payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces Per Month
Get Best Price Contact Now

Detail Information

Color: Black(optional) Brightness: 300nits
Resolution: 1280*1024 Backlight Type: LCD
Contrast: 1000:1 Warranty: 12 Months
Highlight:

17 Inch Panel Mount Industrial Monitor

,

Panel Mount Industrial Monitor 300Nits

,

Panel Mount Industrial Monitor 1280×1024

Product Description

HONGNUO 17 Inch Outdoor Mount Capacitive Touch Monitor

Industrial Touchscreen Monitor



Main feature

  1. Aluminum alloy case, front IP65 waterproof and dustproof.

  2. Industrial LCD panel, wide viewing angle, high nits, true color.

  3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.

  4. High performance mainboard, 7x24 continuous operation.

  5. Wide temperature range: operating: 0 to 60°C, storage: -20 to 75°C.

  6. Support wall mounting, embedded mounting, desk stand mounting etc.

Specification

17 inch

Display Scale

4:3

Backlight Type

LCD

Resolution Ratio

1280*1024

Pixel Size

0.2745mm*0.2745mm

Brightness

300cd/㎡

Chroma

16.7M

Response Time

Typ.6ms

Contrast

1000:1

Visual Angle

80°/80°/70°/70°

Input Signal

LVDS

Backlight Life

50000h

Material

aluminium alloy front bezel + High strength cold rolLCD steel back case

Touch Screen

Touch Type

Projective capactive touch screen

Touch Surface

Lucency

Points

Support 10 points

Touch Mode

Fingers/Pen touch

Resolution Ratio

4096*4096

Response Time

≤10ms

Single Point Operation

Windows XP,Linux

Multipoint Operation

Windows7/8/10,Android

Life Span

Single click touch life≥50 million

Window System

Processor

Intel Baytrail J1800

CS

Intel ®SOC

Display Chip

Intel ®HD Graphics integrated graphics

Display Output

VGA,LVDS,HDMI

USB

1*USB3.0,8*USB2.0

Internal Storage

1*SO-DIMM DDR3L 1333HMz Max8GB

Cooling System

Support

WIFI

1*Mini-PCIE(for WIFI+Bluetooth Card )

Operating Temperature

0~60℃

Storage Temperature

-20~75℃



17 Inch Panel Mount Industrial Monitor 300 Nits 1280×1024 Resolution 0

Custom Designs

HONGNUO is an OEM / ODM factory, customizing your products to tailor your needs is our strength. Our team of designers , software engineers and structure engineers will make sure to render your imagination into actual products!

factory production + software development + ID design + structural design, etc. These teams belong to our own.

17 Inch Panel Mount Industrial Monitor 300 Nits 1280×1024 Resolution 1

FAQ

Q1:Can you provide OEM/ODM service for the industrial monitor?

A: Yes,well supported.We can customize it according to your requests.



Q2:Do you have stock?

A:We keep 2000-5000 units in Stock every single Month.



Q3: Is your company a real manufacturer?

A: Our company is the professional manufacturer in SHENZHENG city, you are the mostly welcomed to visit our factory anytime.



Q4: How is the quality of the product?

A: Our products have been strictly tested high quality by QC before shipping to customers.And we do own brand selling in domestic China market on line, our brand is “HONGNUO”.So quality is the first thing for us!



Q5: Does the product only use for school?

A: Our products are widely used in Hospital, School, office etc.



Q6: How can I trust your product quality?

A: We have more than 10 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by FCC CE & ROHS etc.



Q7: What's your after-sale service?

A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
